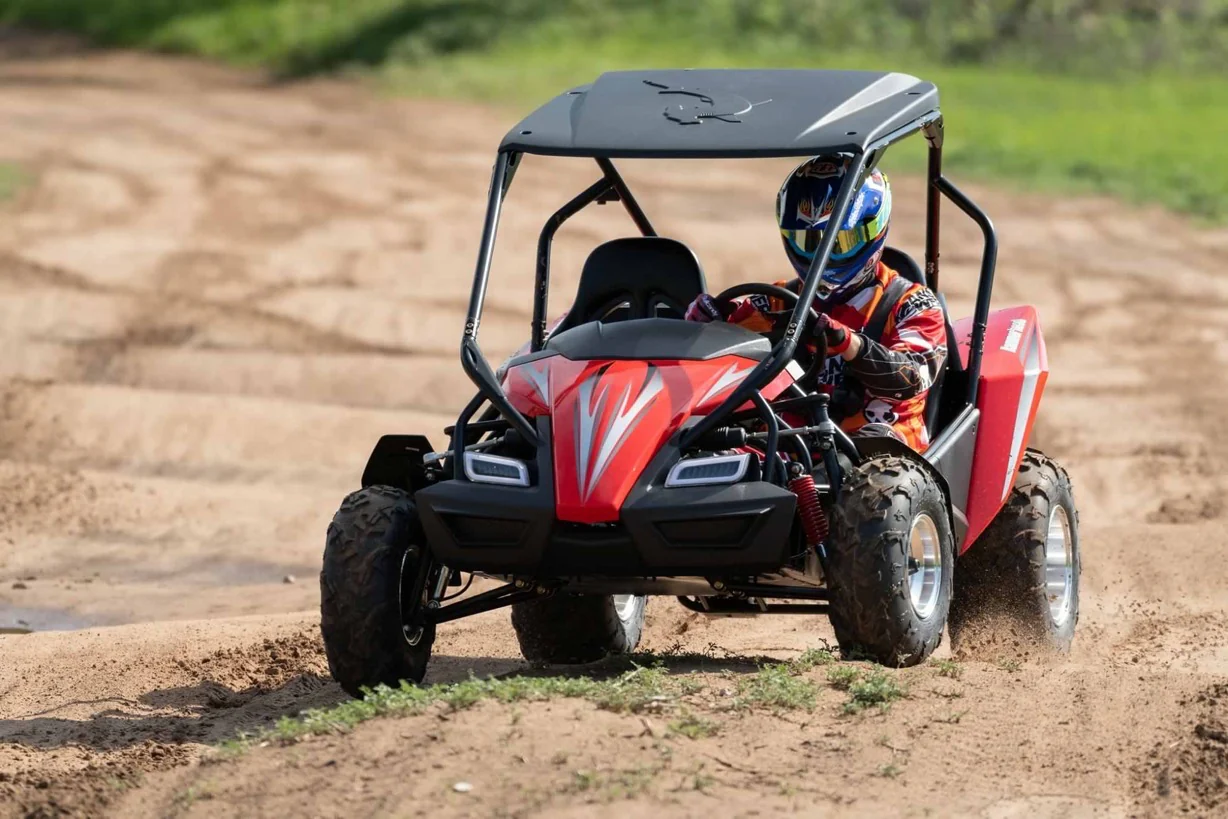

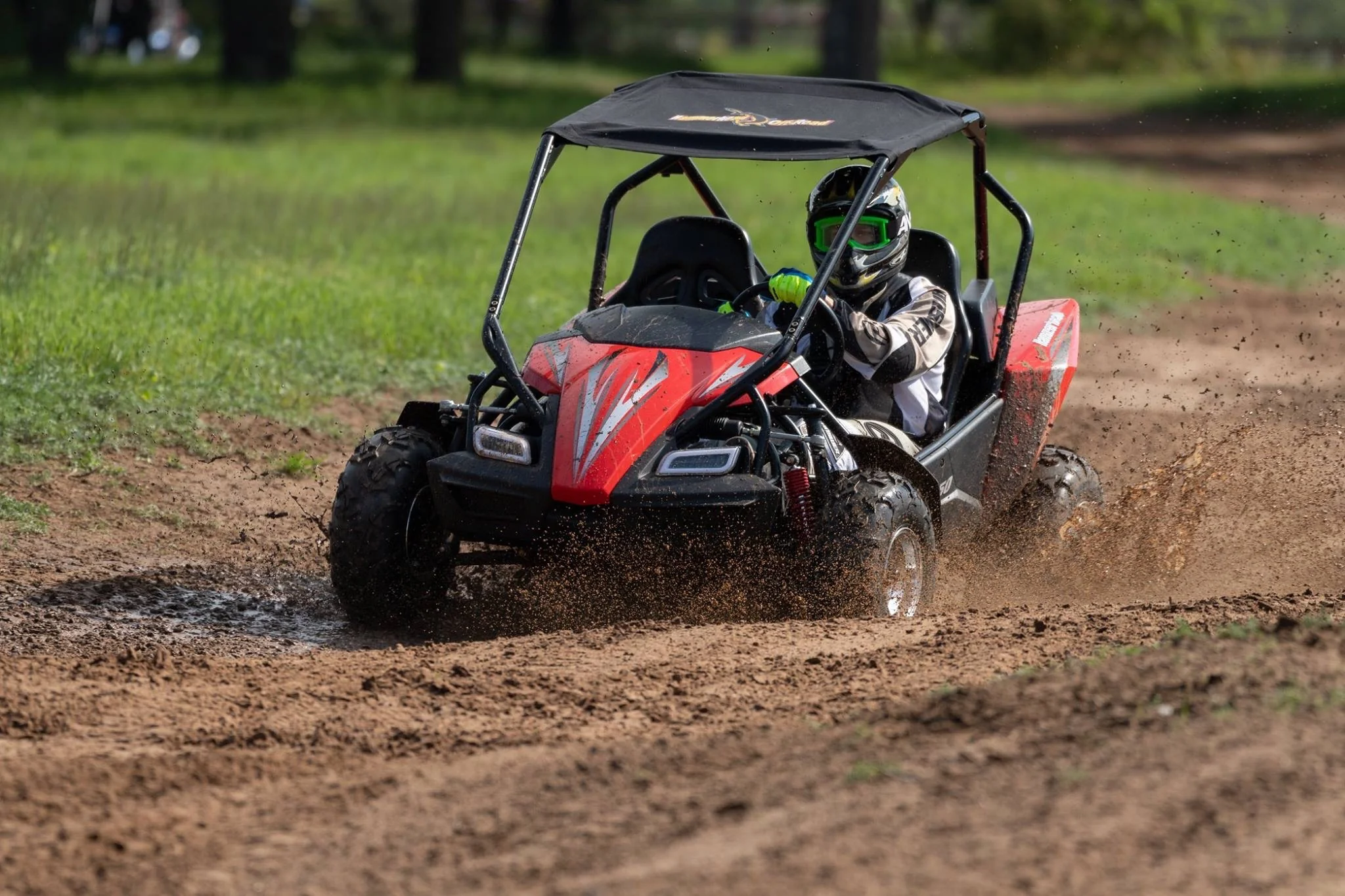

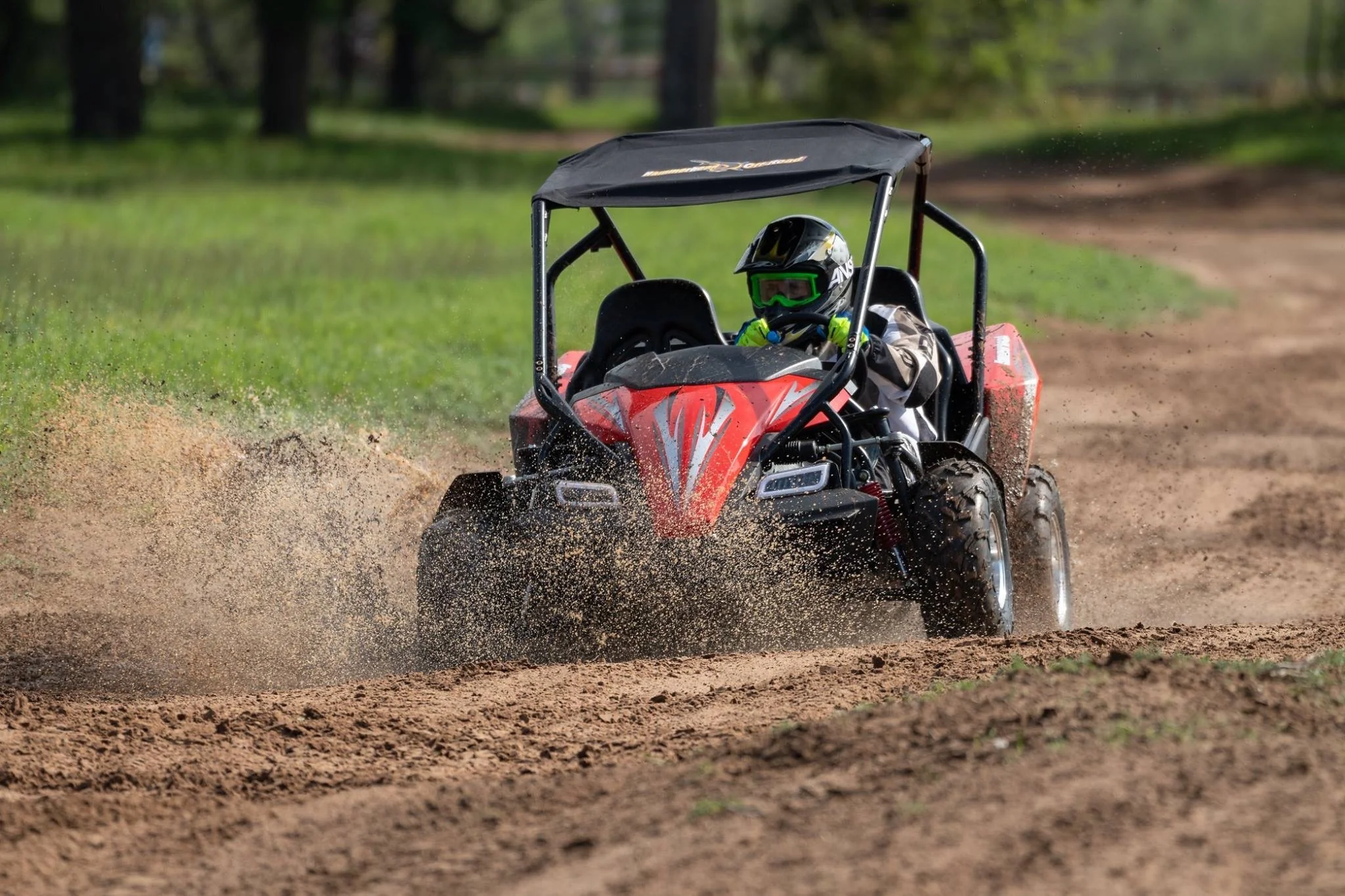

The Hammerhead LE 150 is the newest edition to the Hammerhead line up. By incorporating a modern brushguard design, additional plastic side panels, super-bright LED headlights and an elegant dash this kart has it all. The LE 150 also has a large cargo area and comes with all of the standard features you have come to expect such as a 150cc oil-cooled engine, manual-choke start, and Hammerhead shark-tread CST tires.
The GTS LE also benefits from a sturdy plastic ‘Hammerhead’ moulded roof which is normally sold as an opional accessory.
Key Features –
| WEIGHT | 234KG |
|---|---|
| GROUND CLEARANCE | 115MM |
| WHEELBASE | 1680MM |
| DIMENSIONS | LENGTH = 2350MM / WIDTH = 1420MM / HEIGHT = 1438MM |
| SEATS / BELTS | ONE PIECE PADDED SPORTS SEATS / 5 POINT 2” SAFETY BELTS |
| STEERING | RACK AND PINION |
| FRAME | QUALITY FINISH |
| TYRES | FRONT = 19 X 7– 8 / REAR = 22 X 10 – 10 (OFF ROAD PATTERN) |
| BRAKES | INDEPENDENT BRAKING FRONT / SINGLE CALIPER REAR / DRILLED DISCS |
| WHEELS | BLACK COATED STEEL RIMS – 8” FRONT & 10” REAR |
| SUSPENSION | INDEPENDENT DOUBLE WISHBONE FRONT / SWING ARM – SOLID AXLE REAR |
| SHOCK ABSORBERS | INDEPENDENT SHOCKS – FRONT & REAR |
| DIFFERENTIAL | N/A |
|---|---|
| FINAL DRIVE | SOLID REAR AXLE |
| CLUTCH | CVT (CONSTANTLY VARIABLE TRANSMISSION) DRY CLUTCH & VARIATOR |
| CVT DRIVE | BELT |
| TRANSMISSION | FULLY AUTOMATIC WITH REVERSE |
| FUEL / CAPACITY | STANDARD 4 STROKE PETROL / 9L FUEL TANK CAPACITY |
| START / COOLING | ELECTRIC START CDI / LIQUID COOLED |
| GEARBOX OIL | SAE 85W-140 – 750ML CAPACITY |
| TOP SPEED / POWER | APPROX 30 – 35MPH / 10BHP (AT FULL UNRESTRICTED SPEED / POWER) |
| MODEL | GY6 (ORIGINALLY DEVELOPED BY HONDA FOR THEIR MOTORCYCLES) |
| CARBURETOR | LARGE BORE – EASY ACCESS – UPGRADED FOR EUROPEAN CUSTOMERS |
| ENGINE | 149CC SINGLE CYLINDER – OVERHEAD CAMSHAFT |
